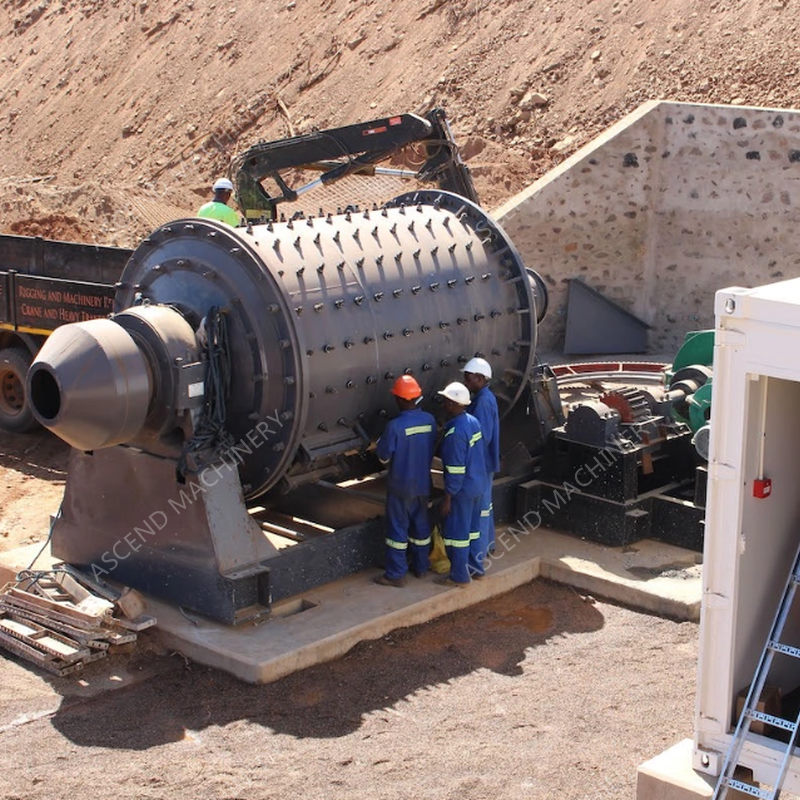

Big capacity wet and dry ball mill crushing and grinding machine for gold iron copper ore

Short Description:

In mining industry business, Ball mill is a key equipment to grind the crushed materials. It is widely used in powder-making production line including cement, silicate, coal, new-type building material, refractory material, fertilizer,metal ores and glass ceramics, etc.. Usually ball mill can be sorted as dry type ball mill and wet type ball mill. It can grind various ores and other materials. Its high working efficiency wins customers’ high praise. And ball mill is now playing a more and more important role in mining business, especially in African market.

Send email to us

Product Detail

Product Tags

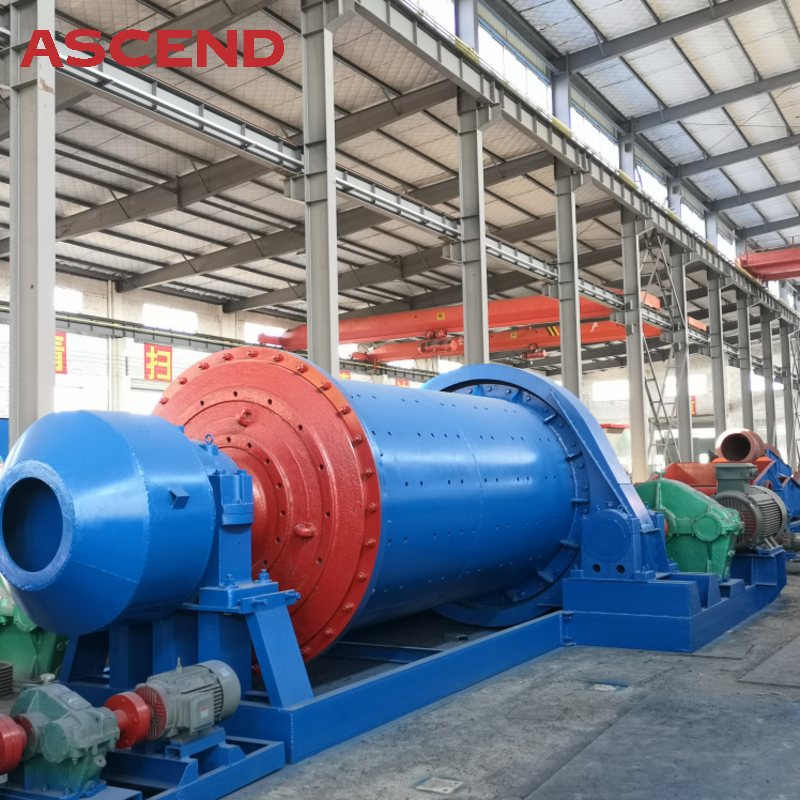

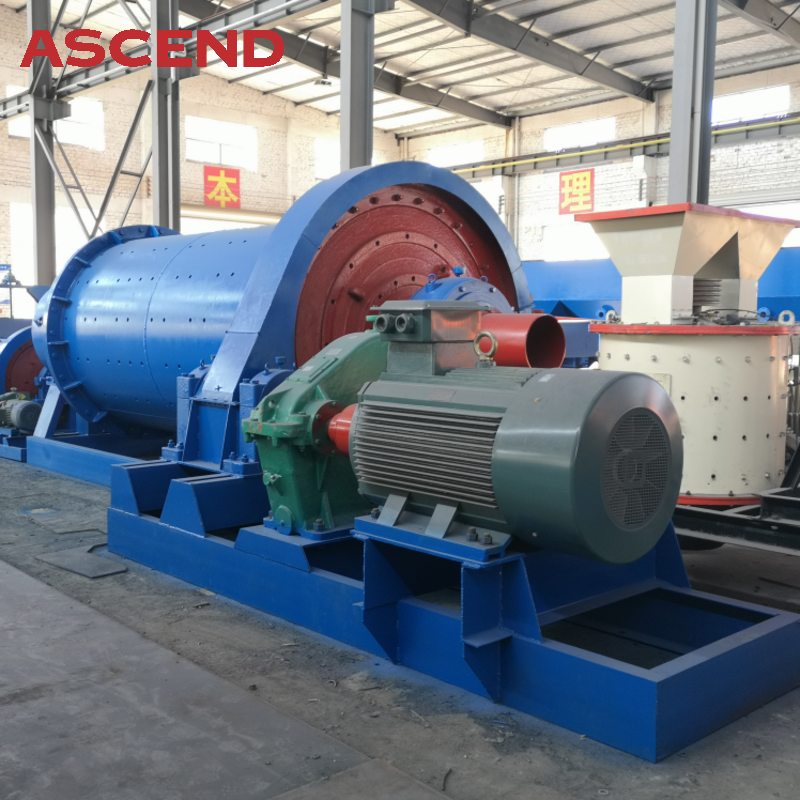

Ball mill is the key equipment for grinding materials after the crushing stage in the beneficiation process. It is used to grind kinds of materials such as copper ore, gold ore, magnetite ore, quartz, lead zinc ore, feldspar and other materials into fine powder 20-75micrometer. Based on discharging type, It could be grate type,overflow type etc. What's more, the ball mill can be used for the dry and wet grinding for all kinds of ores and other grind-able materials. The hot sale ball mill models are 900*1800, 900*3000, 1200*2400, 1500*3000, etc..

Working Principle

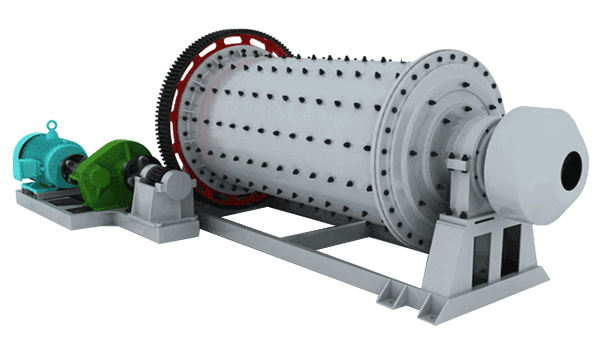

The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber uniformly. There are ladder liner and ripple liner and different sizes of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and then the steel balls fall down in the chamber. Materials between the steel ball are crushed and ground again and again. Thus the ground materials are discharged through the discharging board then the grinding process is finished in this process.

Specifications

Model	Rotation speed(r/m)	Grind Media(ton)	Feed size (mm)	Discharge size(mm)	Capacity (t/h)	Motor (KW)	Weight (ton)
900x1200	36	1.0	0-25	0.074-0.4	0.5-1.5	18.5	4
900x1800	36	1.5			0.5-2	22	4.8
900x2100	38	1.5			0.5-2	22	4.8
900x2400	38	1.8			0.7-2.8	22	4.8
900x3000	38	2.5			0.8-3.5	30	5.0
1200x2400	32	3.8			0.9-4.8	30	9.2
1200x3000	32	4.5			1.2-5.6	37	11.5
1200x4500	30	5.5			1.5-6.0	55	13.6
1500x3000	27	7.0			2.5-6.5	75	15.0
1500x3500	27	8.5			3.0-8.2	75	15.6
1500x4500	27	11			4-10	95	21.0
1500x5700	27	12			4-13	110	23.5
1830x3000	24	12			5-15	130	31.0
1830x3600	24	13			5-16	130	32.0
1830x4500	24	14			5-18	155	33.5
1830x7000	24	21			6-20	210	36.0
2100x3000	24	18			7-26	210	38.0
2100x3600	24	21			7-35	215	39.5
2100x4500	24	26			8-42	245	43.5
2400x3000	21	23			8-60	285	55.0

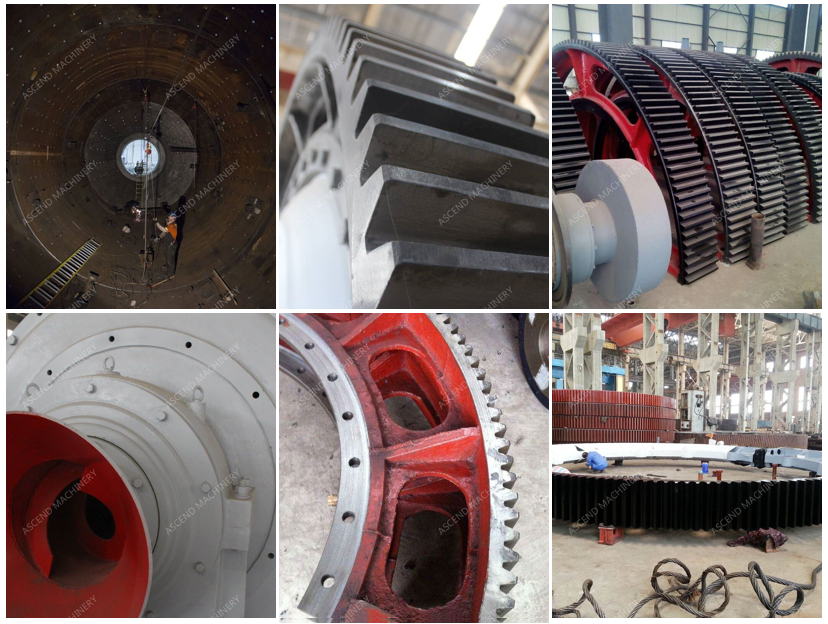

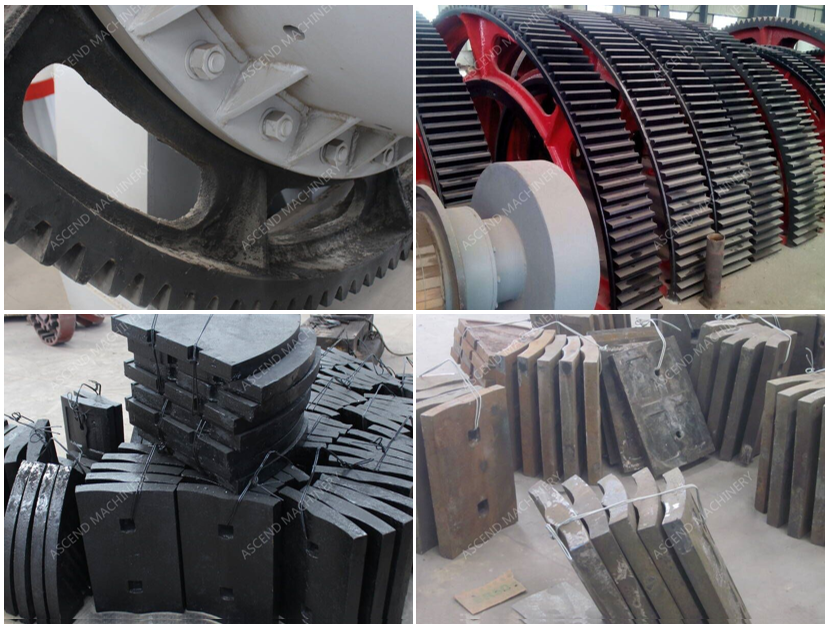

Main parts & Spare parts

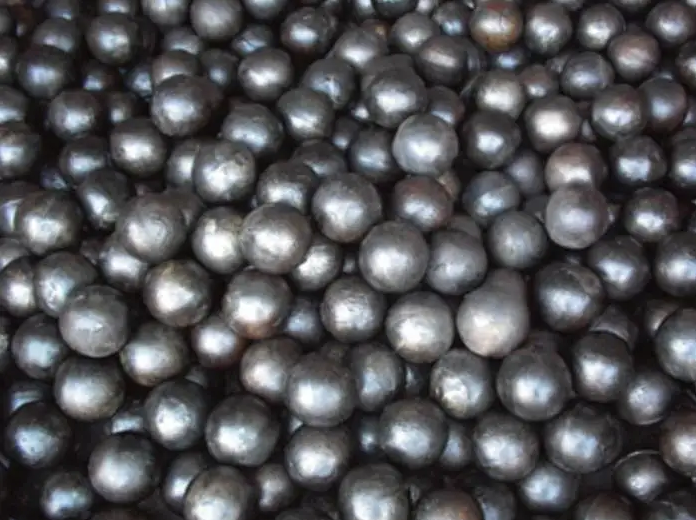

For ball mill, the main spare parts is steel balls, ball mill liners and grate plates. If you need the ball liners and grate plates, you can send us the drawing of liners and grate plates, we can cast for you in our factory. If you do not have the liner data,we can send our engineer to your site and scale the liners, then we can make the drawing and cast the liner in our foundry factory for you.
