Granite Limestone Marble Jaw Crusher for Rock Stone small capacity crushing plant

Short Description:

Ascend PE series jaw crusher is mainly applied to crush various stones, ores and rocks. Compression strength of material is usually less than 320Mpa. Feeding size of the raw material can be 10mm to 750mm.




Product Detail

Product Tags

sredf (6)

Product Details

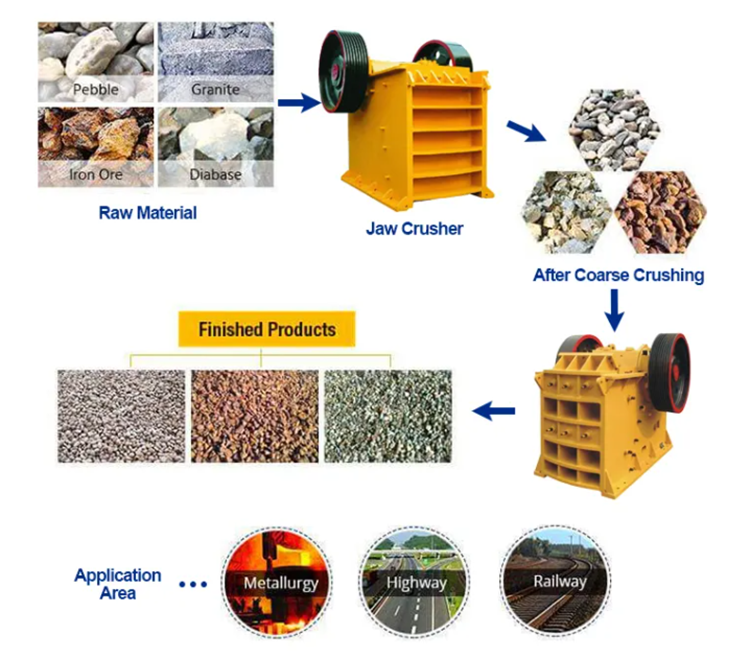

Jaw Crusher is widely used in many other industries like mining, metallic, railway and chemistry to contribute a lot to the overall development of our country construction. For many industries such as cement production, metallurgic industry, mining industry, the jaw crusher usually perform as the primary crushing stage for the whole process.

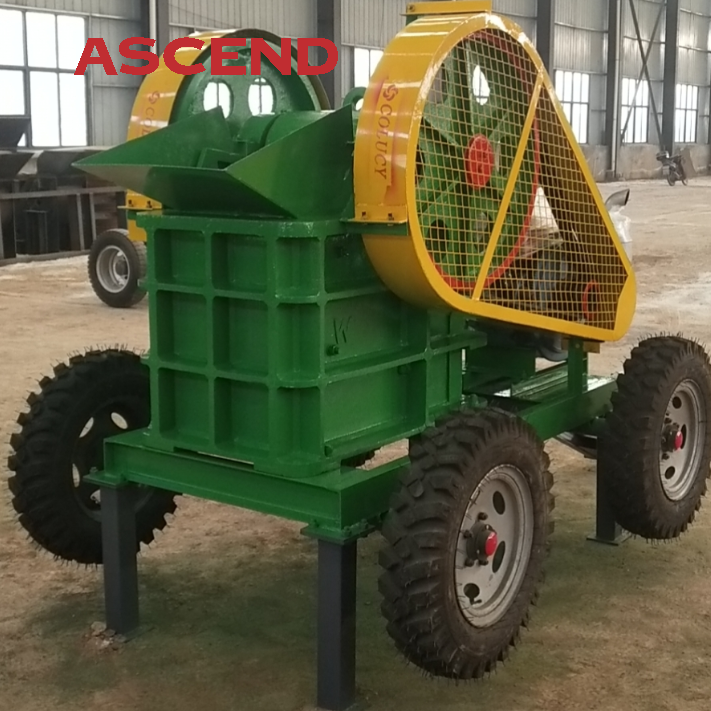

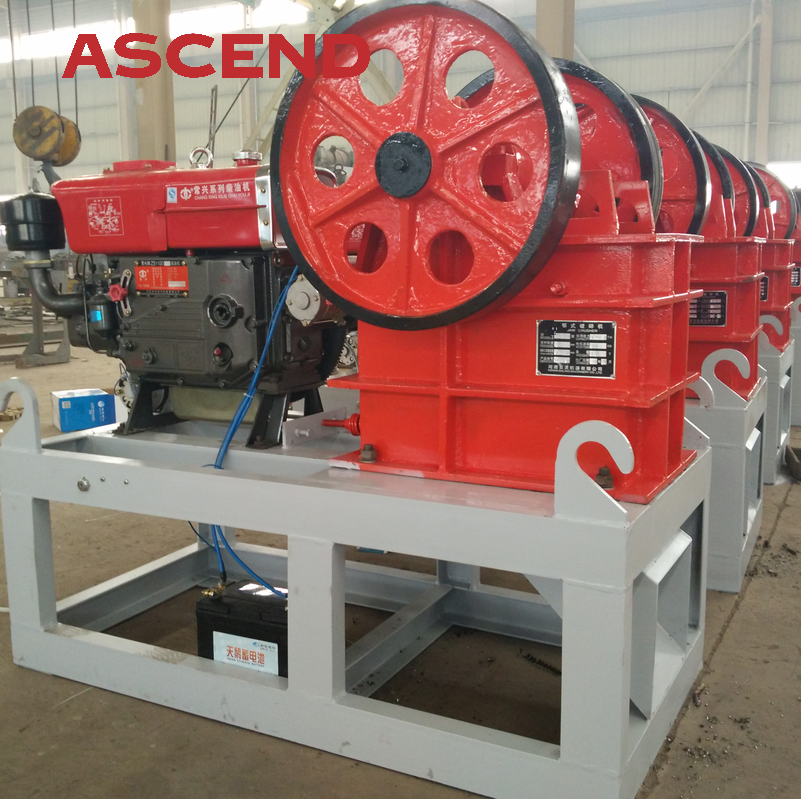

The jaw crusher usually works with electric motor, and according to customers’ demand, we can also equip the jaw crusher machine with diesel engine, can be fixed type and mobile type.

sredf (4)
sredf (7)

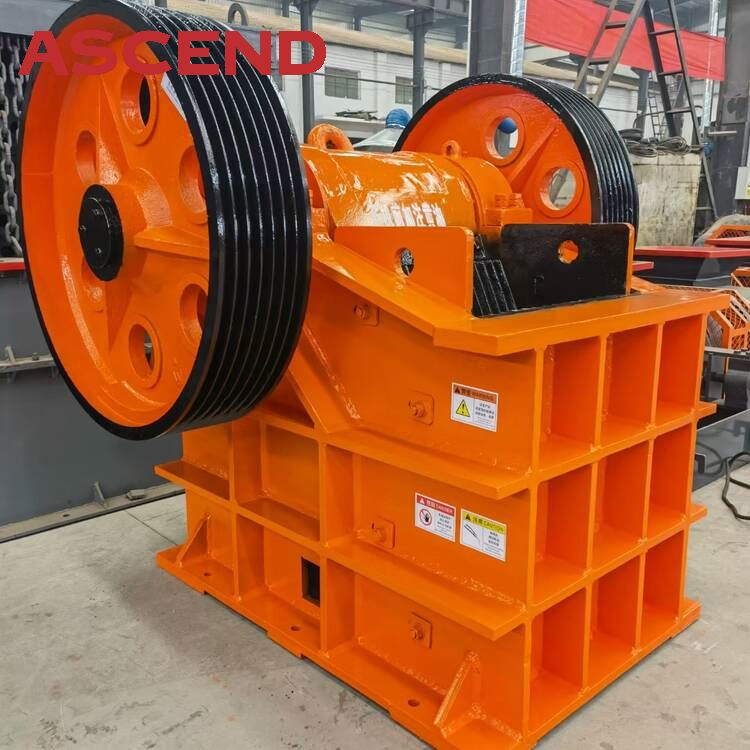

Ascend Jaw Crusher Advantages

As jaw crusher is the most popular product in mining and construction business. Ascend has devoted much effort to its research and development, manufacturing, sales and after-sales over 20 years. We have professional technicians, production equipment, and quality control personnel to ensure each batch of products are certified products. Our jaw crushers are:

1.Stable working performance

2.Easy operate and maintain

3.Long service life

4.7x24h online technical support

sredf (8)
sredf (11)

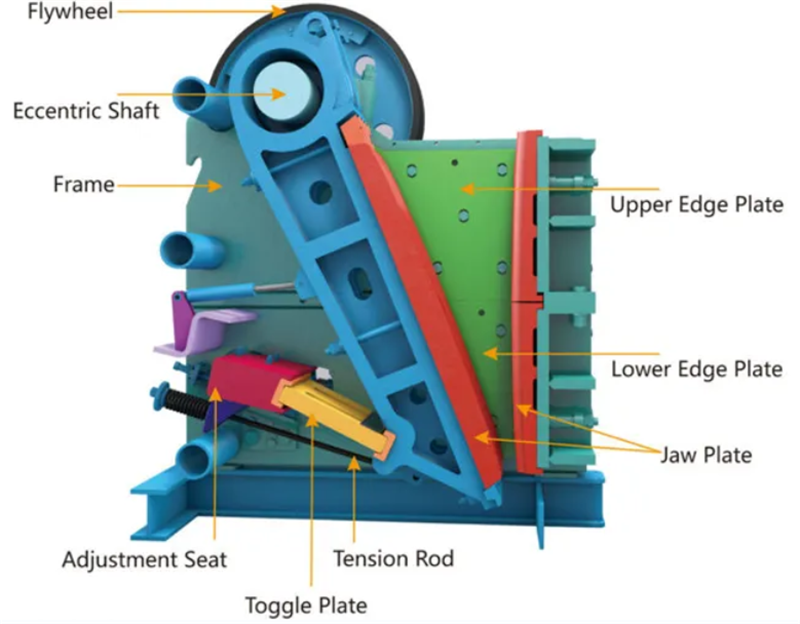

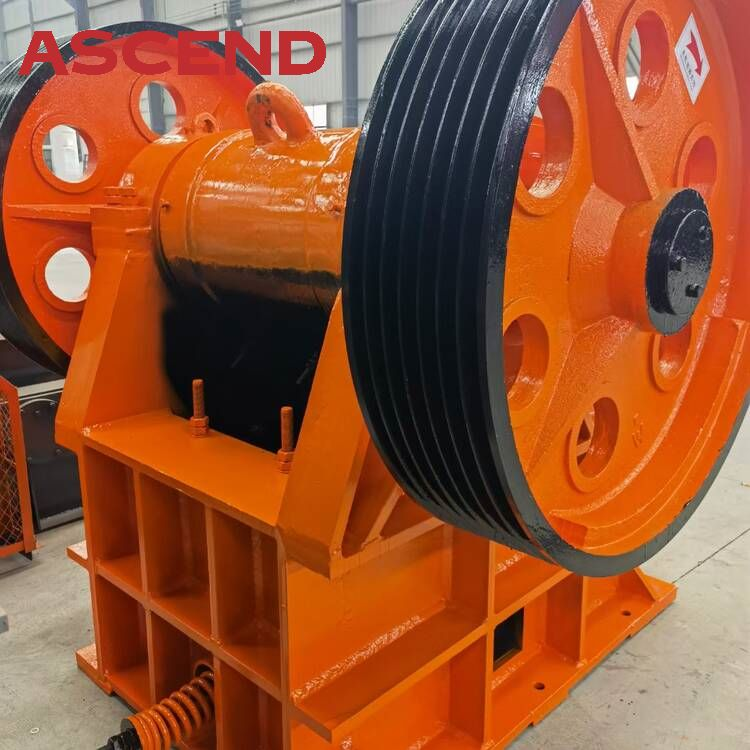

Jaw Crusher Working Principle

When the jaw crusher works, the motor drives the eccentric shaft by the V-belt and the sheave through the motor pulley. At the same time, the movable jaw does reciprocating movement according to the predetermined trajectory. Then it crushes materials inside the crushing cavity formed by the fixed plate, movable plate and the side guard plate. Then final product is discharged from the lower discharge port.

sredf (5)

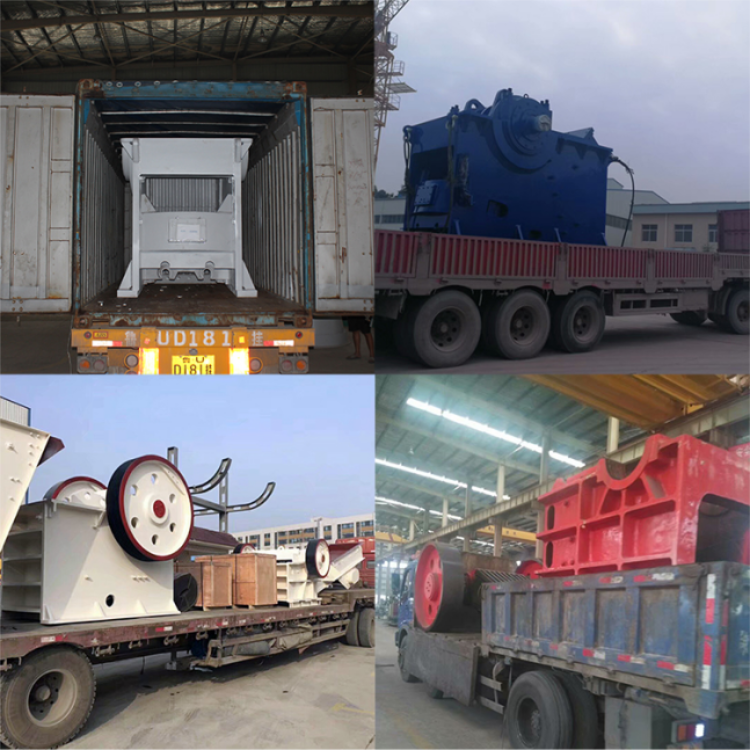

Ascend Jaw Crusher Delivery

Over the past 20 years, We have exported our product to more than 160 countries. Before delivery, we will have our technical team to check the machinery and do the commissioning. We will ensure each of our product will perform well in your plant.

syer (5)

Specifications

Model Feed openning size(mm) Max feeding size(mm) Discharge range(mm) Capacity(t/h) Power (kw) Weight (t)
PE150x250 150x250 125 10-40 1-3 5.5 0.7
PE250x400 250x400 210 20-60 5-120 15 2.8
PE400x600 400x600 340 40-100 30-50 30 7
PE500x750 500x750 425 50-180 35-80 55 12
PE600x900 600x900 500 50-180 80-150 75 17
PE750x1060 750x1060 630 80-140 110-320 90 31
PE900x1200 900x1200 750 95-165 220-350 160 52
PE1200x1500 1200x1500 1020 150-350 400-800 220 100
PE150x750 150x750 120 18-48 10-25 15 3.8
PE250x750 250x750 210 15-60 15-35 30 6.5
PE250x1000 250x1000 210 15-60 16-52 37 7
PE250x1200 250x1200 210 15-60 20-60 45 9.7

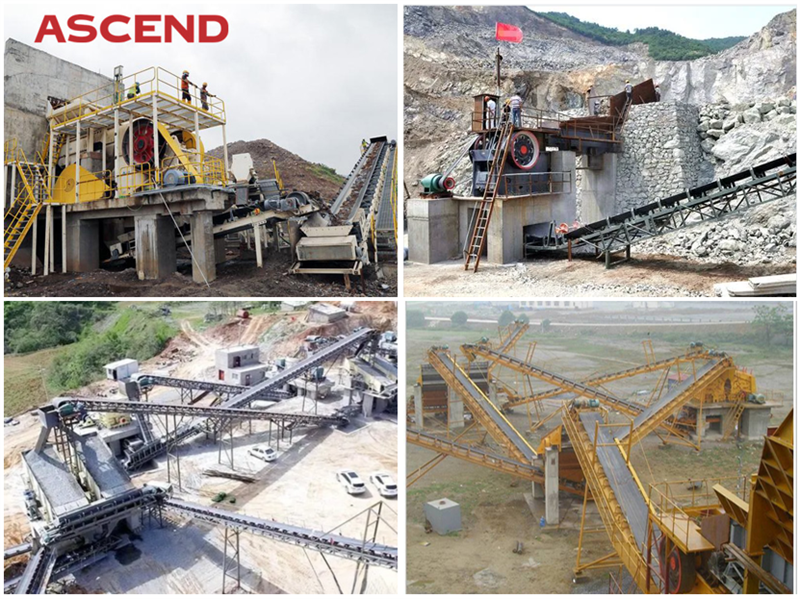

Ascend Jaw Crusher working sites

sredf (10)

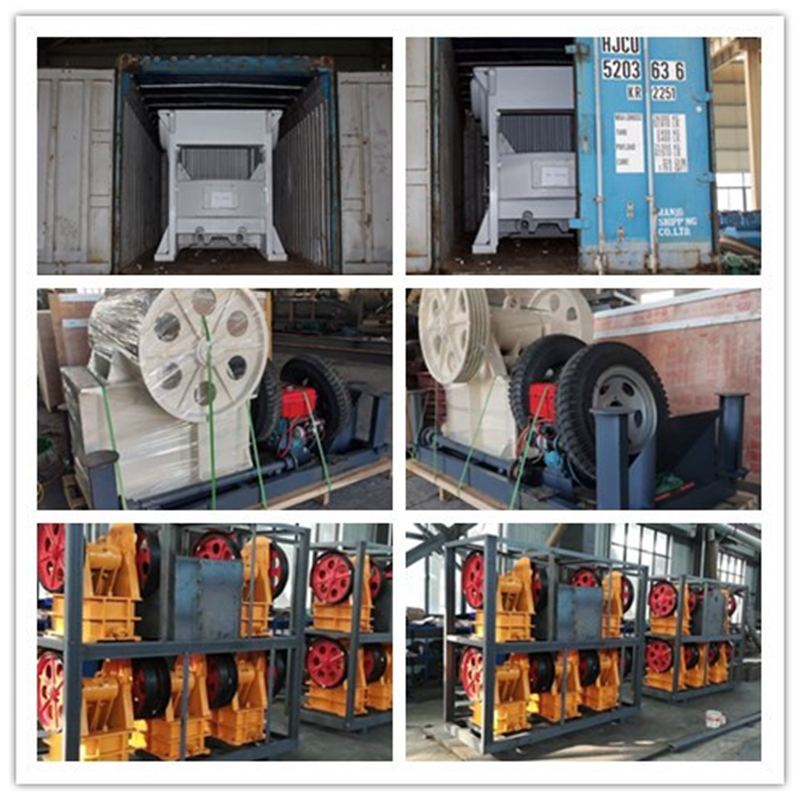

Ascend Jaw Crusher Delivery

sredf (12)

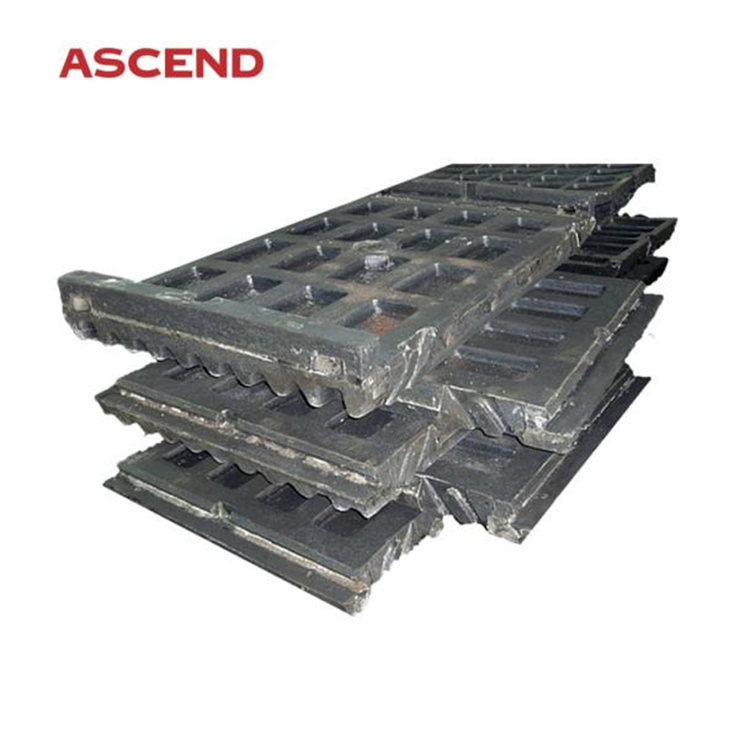

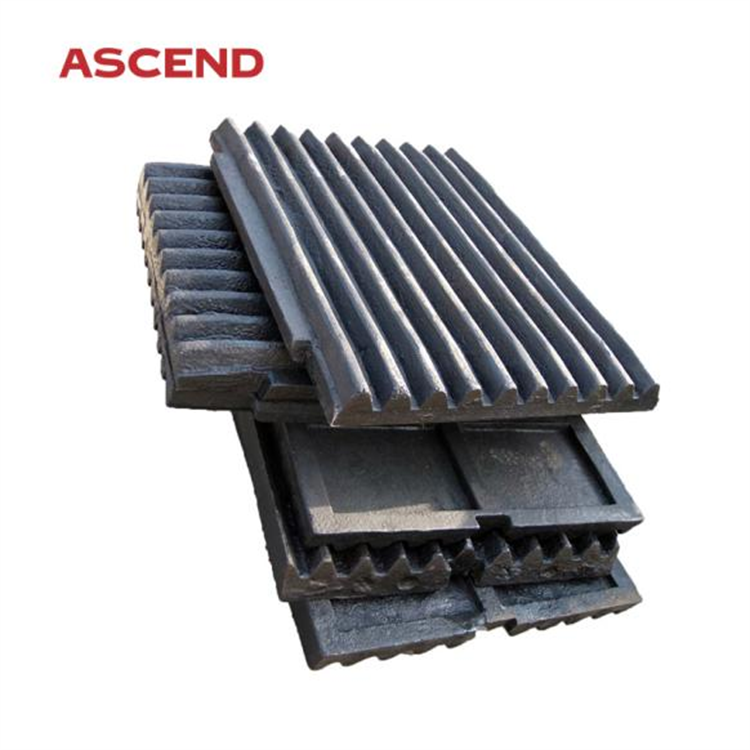

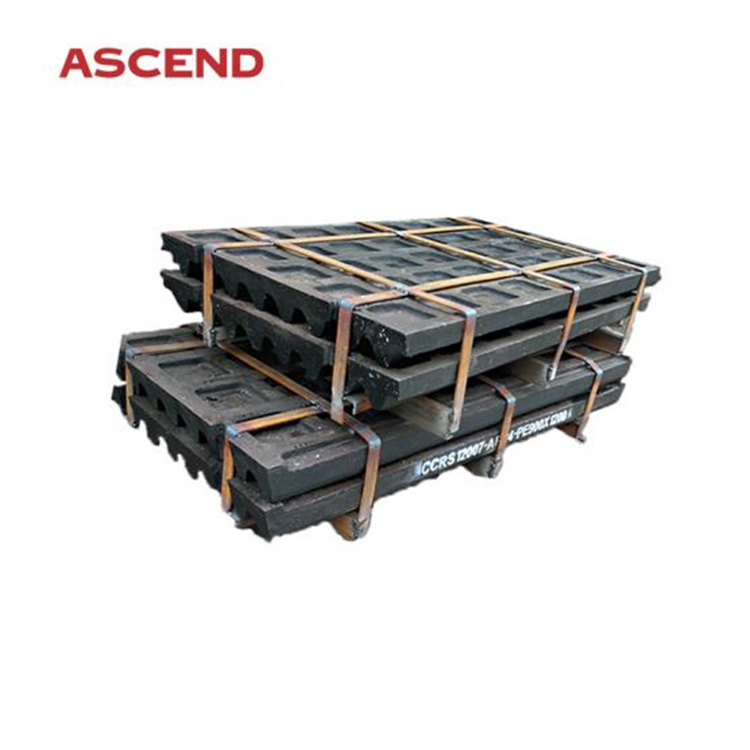

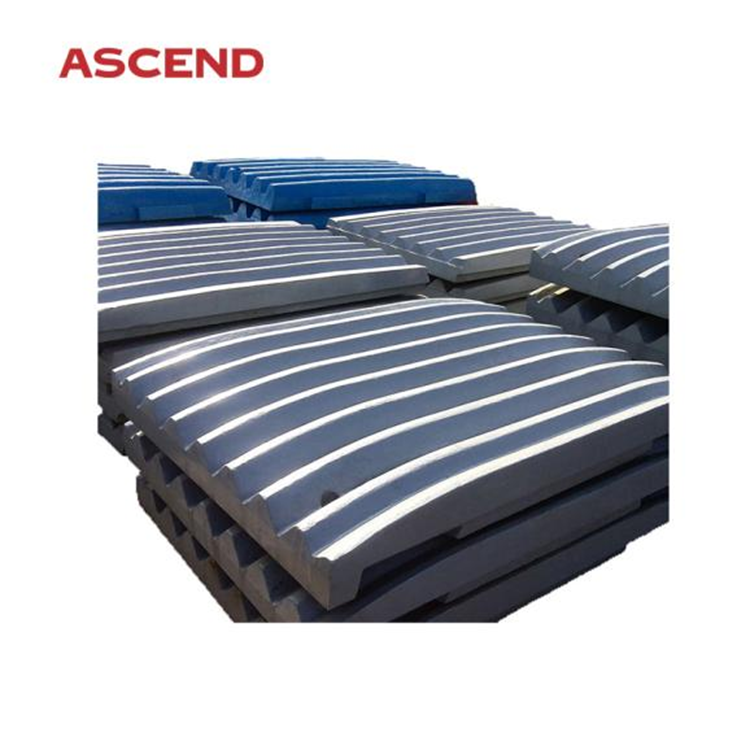

Jaw Crusher spare parts

sredf (1)
sredf (2)
sredf (3)
sredf (9)
