Mining Copper gold iron ore Jaw Crusher crushing line

Short Description:

Jaw crusher is the most popular equipment for mining and crushing business. Usually we use jaw crusher as the primary crusher to crush big stones. Then the material goes to secondary crusher such as cone crusher, impact crusher or jaw crusher as well for better crushing. Big size stones such as 500-800mm will be crushed into 10-50-100mm small aggregates. Then they will go to next process to be crushed or ground.

Send email to us

Product Detail

Product Tags

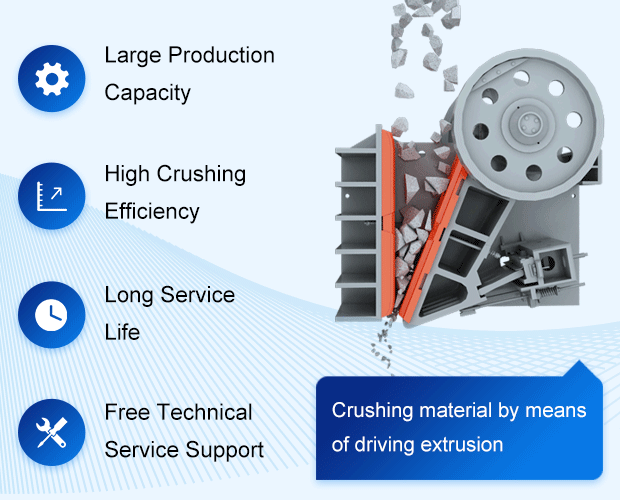

Jaw crusher working principle

Jaw crusher is mainly consist of fixed jaw, movable jaw, side plates, flywheel, eccentric shaft, bearings, etc.. When it works, the motor transmits through belt, then drives the movable jaw to do periodic motion towards the fixed jaw by the eccentric shaft. The angle between toggle plate and movable jaw plate increases when the movable jaw works. The angle between toggle plate and movable jaw decreases when movable jaw moves down, the movable jaw leaves fixed jaw by pulling rod and spring. The material will be crushed in this process. And the final crushed product will be discharged from the outlet.

Specifications

Model	Feed openning size(mm)	Max feeding size(mm)	Discharge range(mm)	Capacity(t/h)	Power (kw)	Weight (t)
PE150x250	150x250	125	10-40	1-3	5.5	0.7
PE250x400	250x400	210	20-60	5-120	15	2.8
PE400x600	400x600	340	40-100	30-50	30	7
PE500x750	500x750	425	50-180	35-80	55	12
PE600x900	600x900	500	50-180	80-150	75	17
PE750x1060	750x1060	630	80-140	110-320	90	31
PE900x1200	900x1200	750	95-165	220-350	160	52
PE1200x1500	1200x1500	1020	150-350	400-800	220	100
PE150x750	150x750	120	18-48	10-25	15	3.8
PE250x750	250x750	210	15-60	15-35	30	6.5
PE250x1000	250x1000	210	15-60	16-52	37	7
PE250x1200	250x1200	210	15-60	20-60	45	9.7

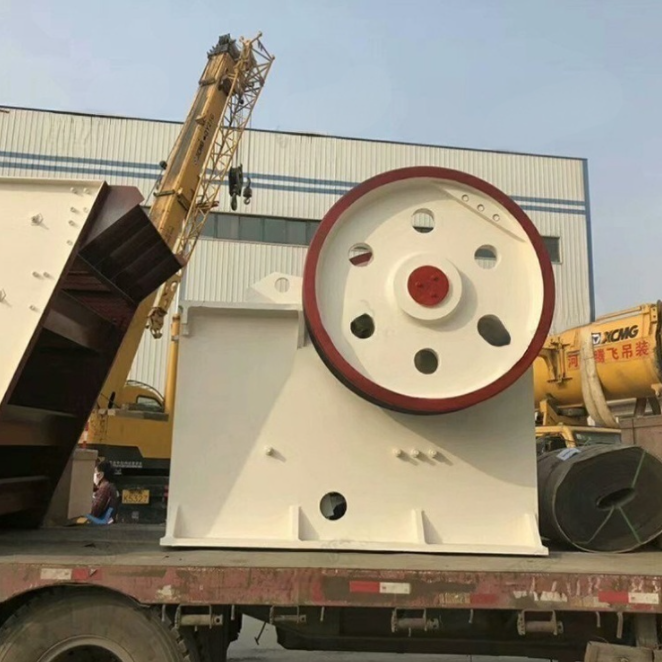

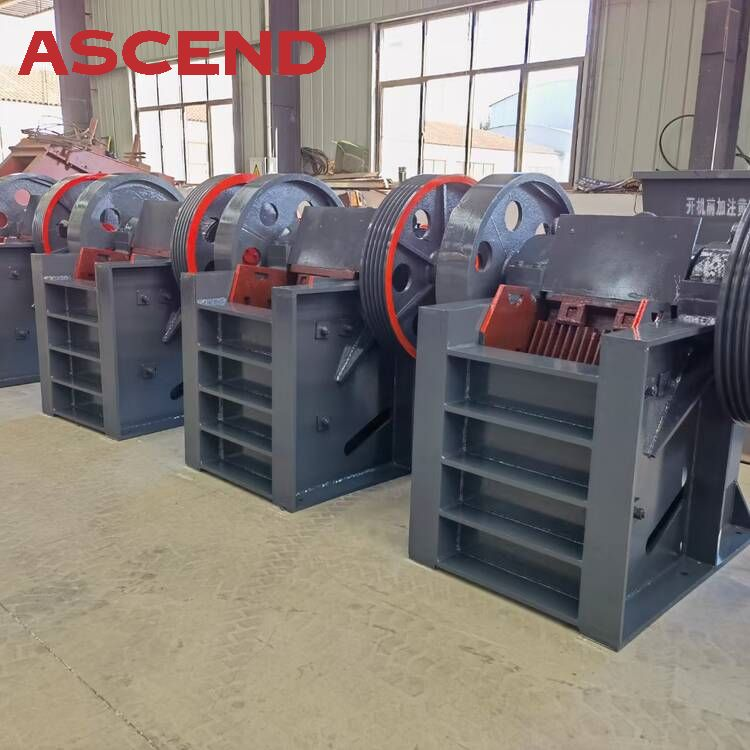

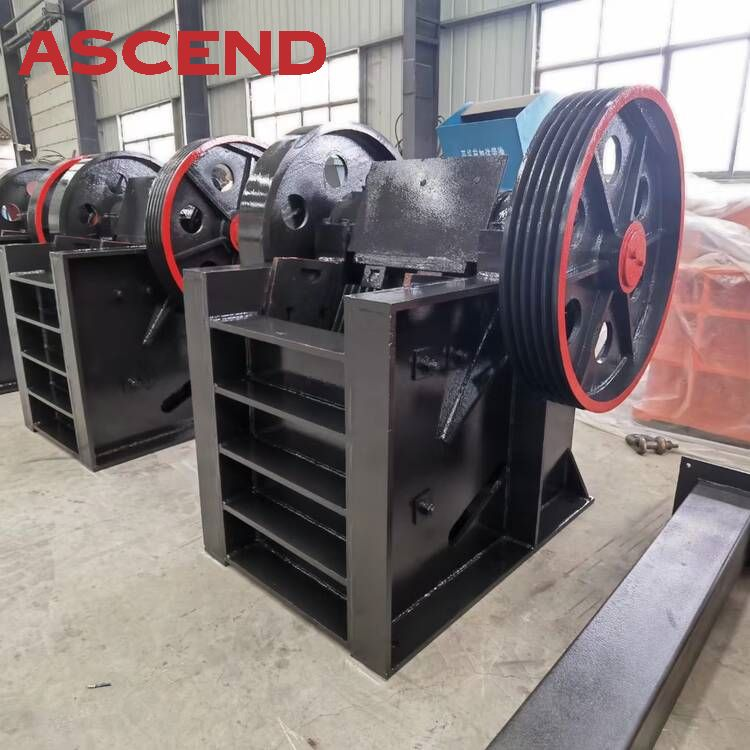

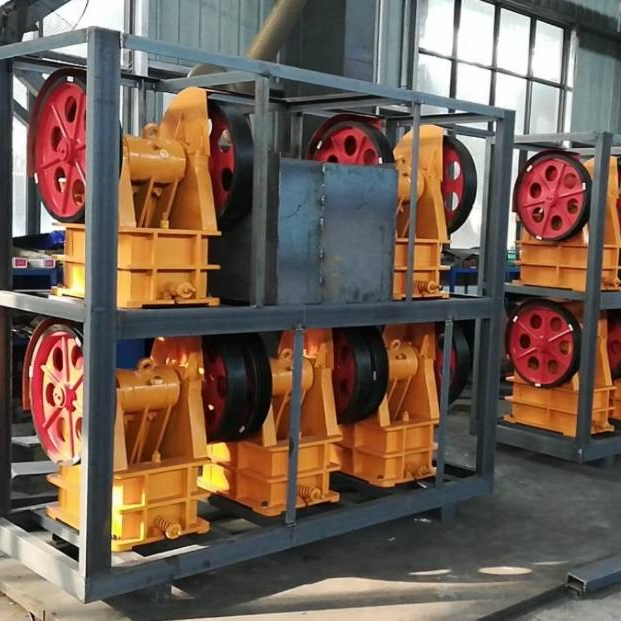

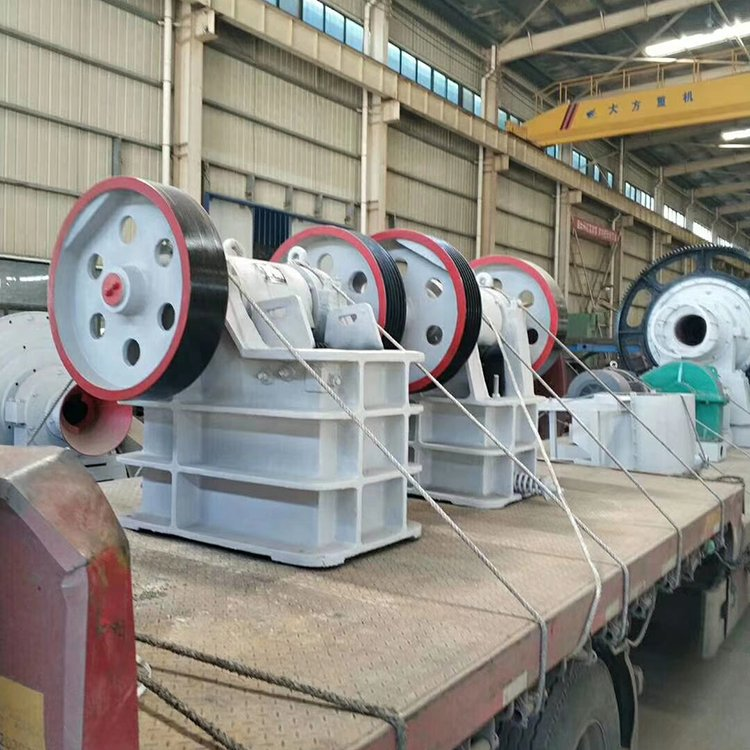

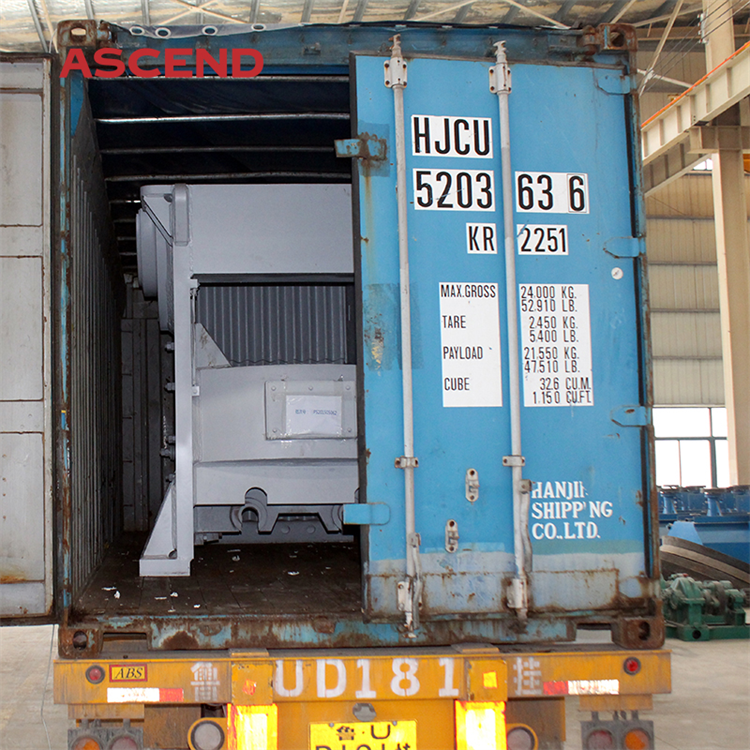

Ascend Jaw Crusher Delivery

Over the past 20 years, We have exported our product to more than 160 countries. Before delivery, we will have our technical team to check the machinery and do the commissioning. We will ensure each of our product will perform well in your plant.

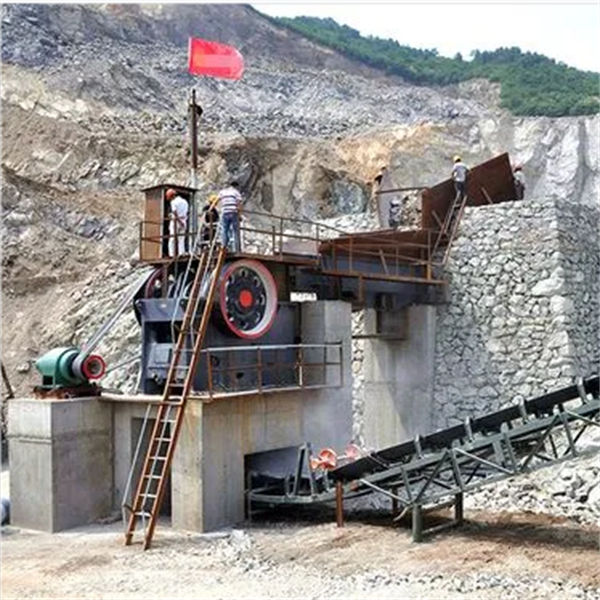

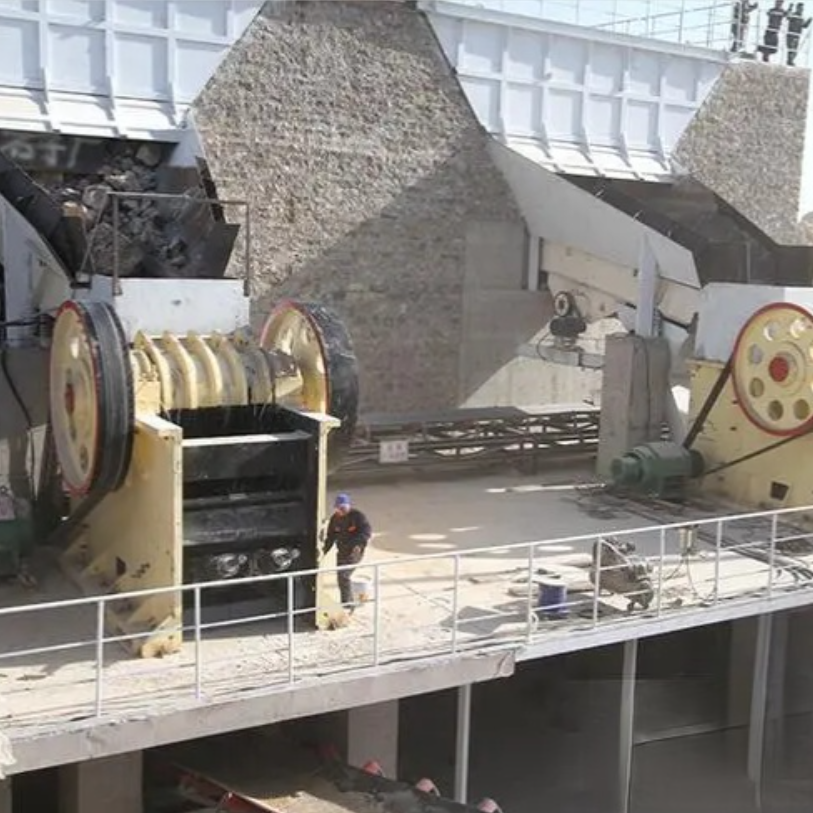

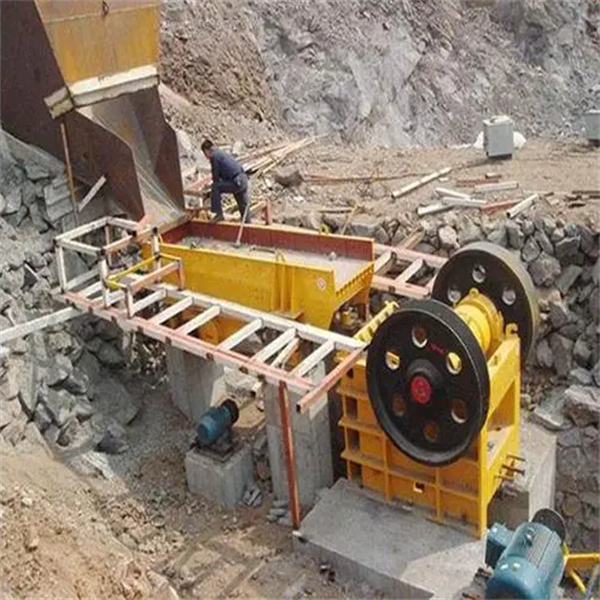

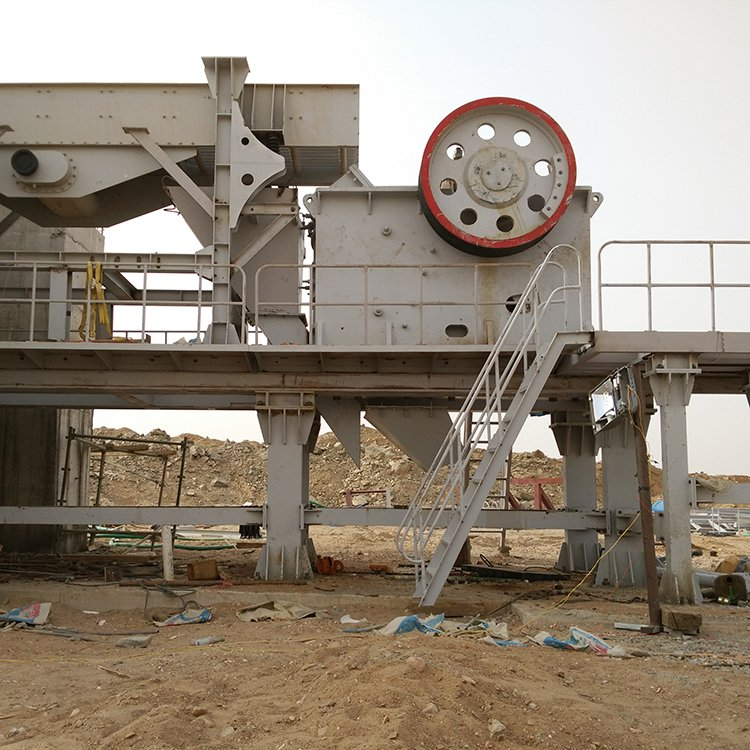

Ascend Working Sites Abroad

After-sale service

Ascend has a professional engineer team responsible for the pre-sales technical consultation, technical solutions in the process of sales, installation, commissioning and after-sales service to ensure that customers have a good purchase and use experience. Our products always work stable as we provide good quality and we have plenty overseas experience. Also we have a 7x24h online service whenever you need our assistance.
