Limestone Rock Stone Jaw Crusher Machine

Short Description:

Jaw crusher is a trusted and reliable brand for its high quality and good manufacturing. Jaw Crusher which is widely applied to crush high hardness, mid hardness and soft rocks and ores such as slag, construction materials, marble, etc. The pressure resistance strength is under 200Mpa, that is suitable for primary crush. Each model has a large feed opening for its size and an ideal nip angle, giving smooth material flow, high reduction efficiency and high capacity. Their simple design conceals many advanced features that give easy operation, simple maintenance, long life and a low cost.


Product Detail

Product Tags

The jaw crusher usually worked with electric motor, and according to customer demand, we can also equipment the jaw crusher machine with diesel engine, can be fixed type or mobile crusher plant.

1
2

Technical Parameters

Model

Max. Feeding size
(mm)

Discharge size
(mm)

Capacity
(t/h)

Motor power
(kw)

Weight
(t)

Dimension
(mm)

Pe150*250

125

10-40

1-3

5.5

0.7

1000*870*990

Pe250*400

210

20-60

5-20

15

2.8

1300*1090*1270

Pe400*600

340

40-100

16-60

30

7

1730*1730*1630

Pe400*900

340

40-100

40-110

55

7.5

1905*2030*1658

Pe500*750

425

50-100

40-110

55

12

1980*2080*1870

Pe600*900

500

65-160

50-180

75

17

2190*2206*2300

Pe750*1060

630

80-140

110-320

90

31

2660*2430*2800

Pe900*1200

750

95-165

220-450

160

52

3380*2870*3330

Pe1000*1200

850

195-265

315-500

160

55

3480*2876*3330

Pex150*750

120

18-48

8-25

15

3.8

1200*1530*1060

Pex250*750

210

15-60

13-35

30

6.5

1380*1750*1540

Pex250*1000

210

15-60

16-52

37

7

1560*1950*1390

Pex250*1200

210

15-60

20-61

45

9.7

2140*2096*1500

Working Principle of Jaw Rock Crusher

During the working process of the jaw rock crusher, the motor drives the eccentric sleeve to rotate through the transmission device. The moving cone rotates and swings under the force of the eccentric shaft sleeve, and the section of the moving cone close to the static cone becomes the crushing cavity. The material is crushed by multiple squeezing and impacts of the moving cone and static cone. When the moving cone leaves this section, the material that has been crushed to the required particle size there falls under its own gravity and is discharged from the bottom of the cone.

3

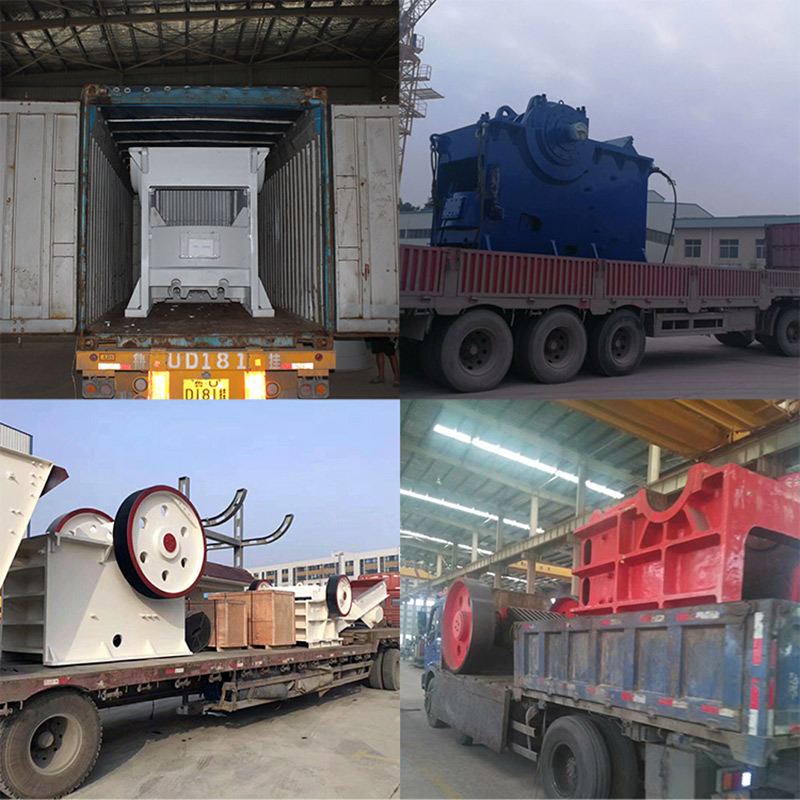

Delivery of Jaw Rock Crusher

4
