Gold Copper Ore Stone Ball Mill Grinding Mill Machine

Short Description:

Energy-saving ball mill is a key grinding mill equipment for material grinding after crushing process. It is widely used in powder-making production lines, such as cement, silicate, new-type building material, refractory material, fertilizer, glass ceramics and non-ferrous metal etc.


Product Detail

Video

Product Tags

Ball mill is the key equipment for grinding after the crushing process in the beneficiation plant, it is used to grind kinds of materials such as copper ore, gold ore, magnetite ore, quartz, lead zinc ore, feldspar and other materials into fine powder 20-75micrometer. Based on discharging type, It could be grate type,overflow type etc. What's more, the ball mill can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.  The hot sale ball mill models are 900*1800, 900*3000, 1200*2400, 1500*3000, etc.


Ball Mill Working Principle

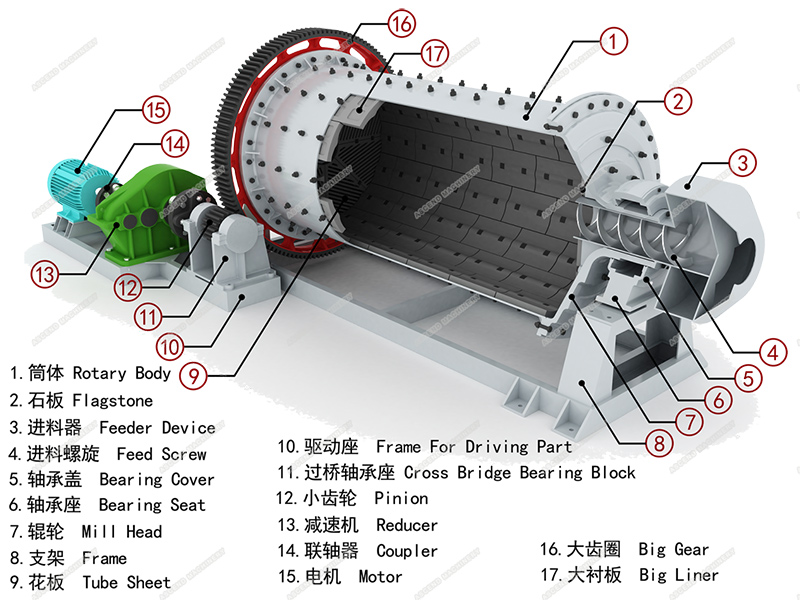

The ball mill is horizontal cylindrical rotation device,driving by brim gearwheel, there are two chambers and grid. Material goes into the first chamber through the feeding inlet, inside the first chamber, there are stage liners and ripple liners as well as steel balls with various kinds.The shell rotates which generates eccentricity, this force brings balls to a certain height and then balls drop down by gravity, which will impact and grind the material. After the primary grinding in the first chamber, material goes into the second chamber through segregate screen, in the second chamber, there are fiat liners and steel balls, after the secondary grinding, material is discharged through the discharge screen.

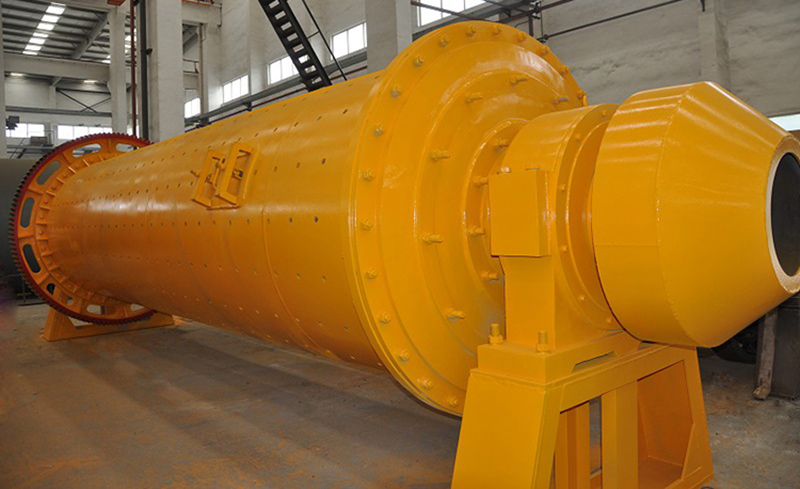

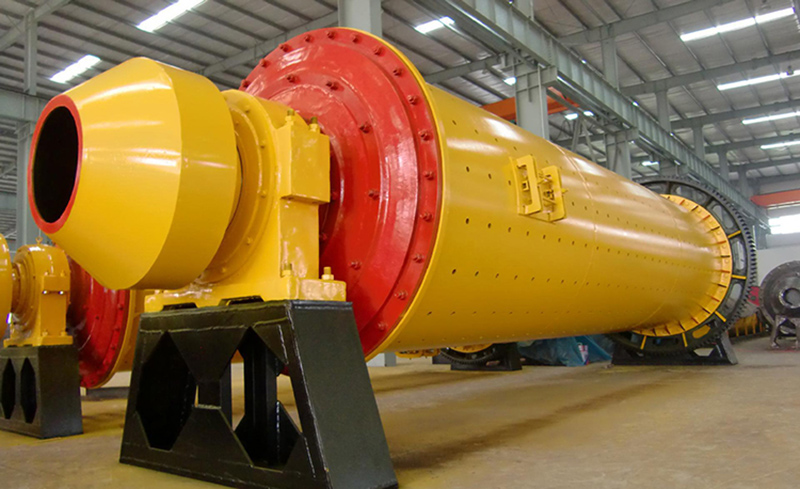

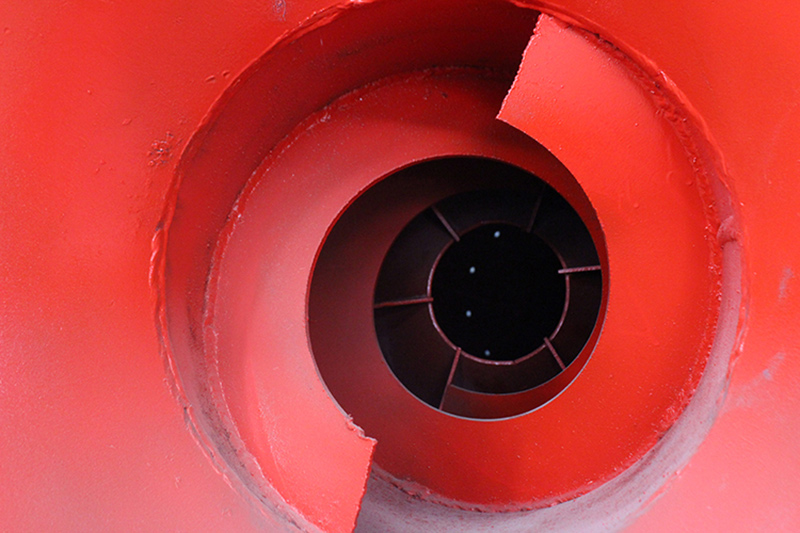

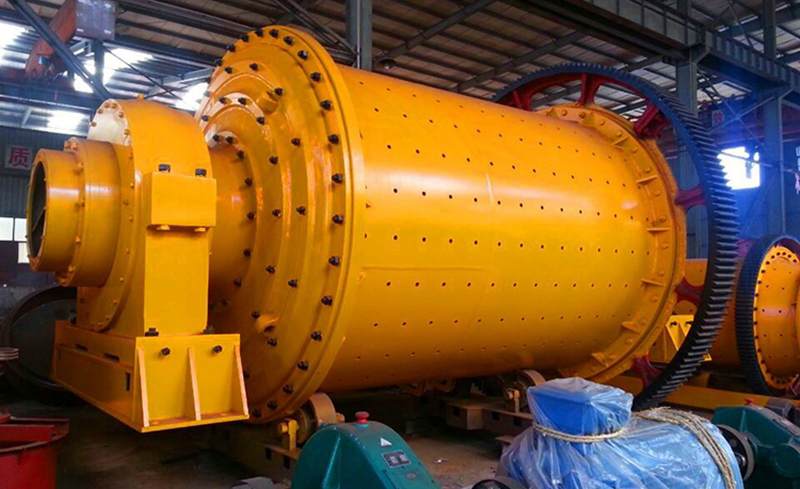

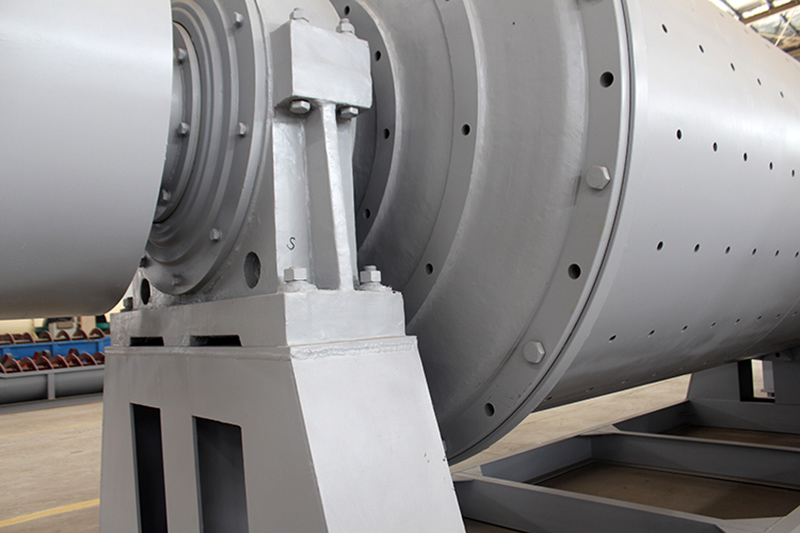

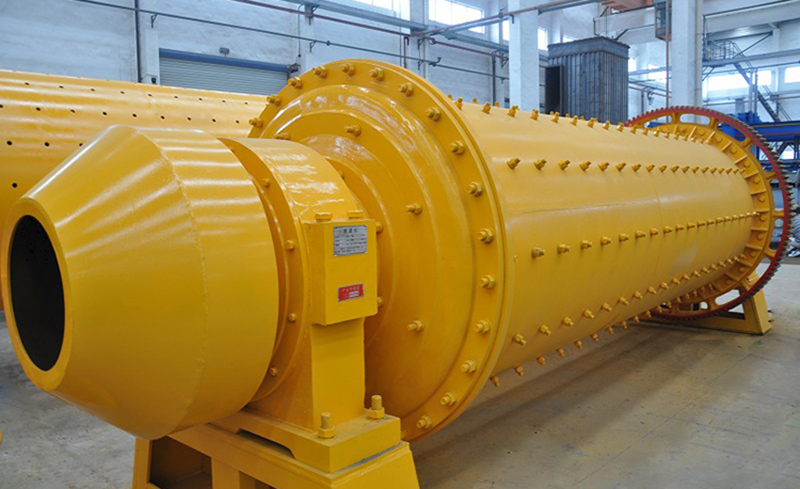

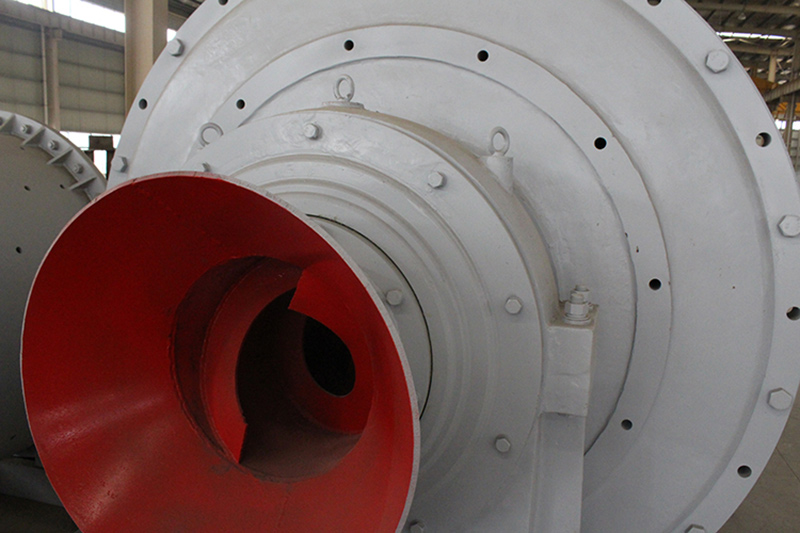

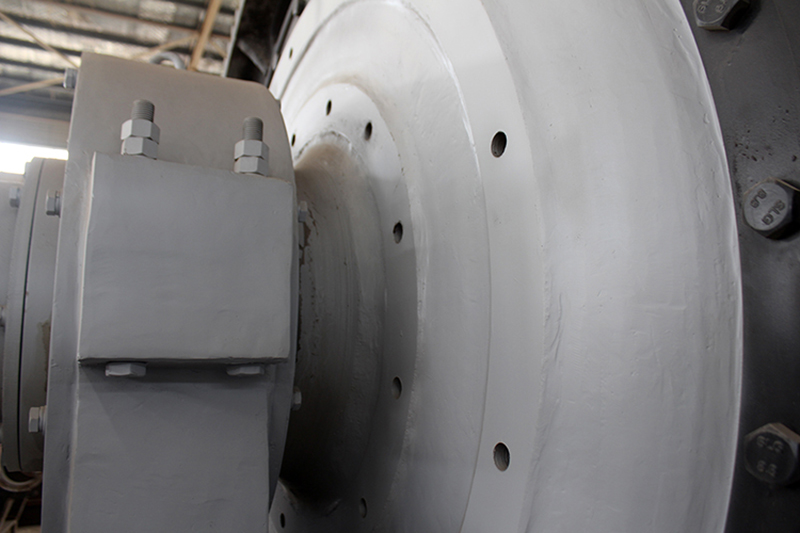

Ball Mill Details


Ball Mill Specifications

Model

Shell rotation speed

(r/min)

Ball load

(t)

Feeding size

(mm)

Discharging size

(mm)

Capacity

(t/h)

Motor power

(kw)

Total weight

(t)

Ф900×1800

36-38

1.5

<20

0.075-0.89

0.65-2

18.5

5.85

Ф900×3000

36

2.7

<20

0.075-0.89

1.1-3.5

22

6.98

Ф1200×2400

36

3

<25

0.075-0.6

1.5-4.8

30

13.6

Ф1200×3000

36

3.5

<25

0.074-0.4

1.6-5

37

14.3

Ф1200×4500

32.4

5

<25

0.074-0.4

1.6-5.8

55

15.6

Ф1500×3000

29.7

7.5

<25

0.074-0.4

2-5

75

19.5

Ф1500×4500

27

11

<25

0.074-0.4

3-6

110

22

Ф1500×5700

28

12

<25

0.074-0.4

3.5-6

130

25.8

Ф1830×3000

25.4

11

<25

0.074-0.4

4-10

130

34.5

Ф1830×4500

25.4

15

<25

0.074-0.4

4.5-12

155

38

Ф1830×6400

24.1

21

<25

0.074-0.4

6.5-15

210

43

Ф1830×7000

24.1

23

<25

0.074-0.4

7.5-17

245

43.8

Ф2100×3000

23.7

15

<25

0.074-0.4

6.5-36

155

45

Ф2100×4500

23.7

24

<25

0.074-0.4

8-43

245

56

Ф2100×7000

23.7

26

<25

0.074-0.4

12-48

280

59.5

Ф2200×4500

21.5

27

<25

0.074-0.4

9-45

280

54.5

Ф2200×6500

21.7

35

<25

0.074-0.4

14-26

380

61

Ф2200×7000

21.7

35

<25

0.074-0.4

15-28

380

62.5

Ф2200×7500

21.7

35

<25

0.074-0.4

15-30

380

64.8

Ф2400×3000

21

23

<25

0.074-0.4

7-50

245

58

Ф2400×4500

21

30

<25

0.074-0.4

8.5-60

320

72

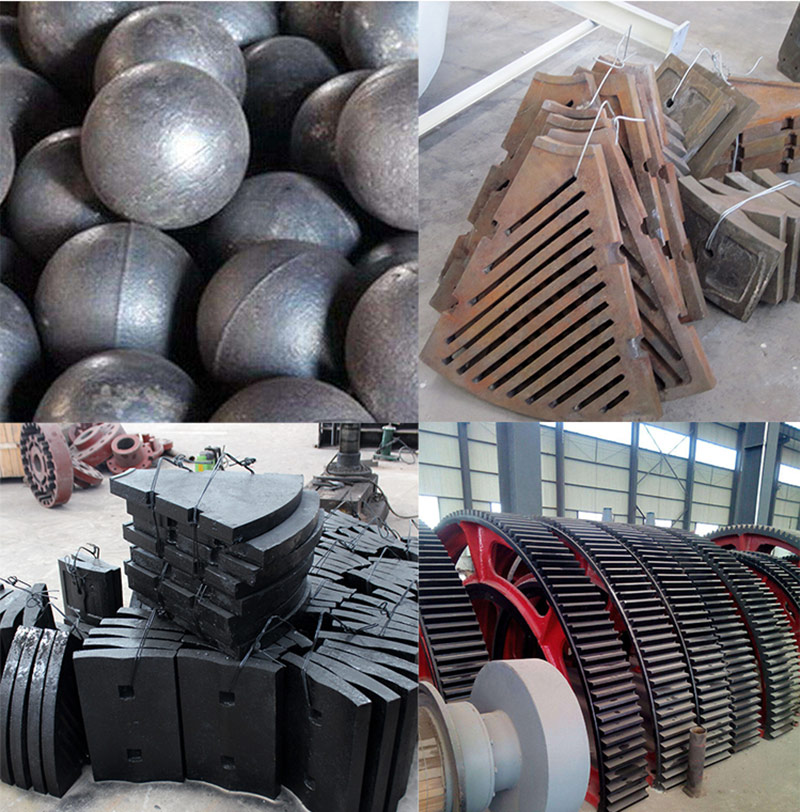

Ball Mill Spare Parts

For ball mill, the main spare parts is steel balls, ball mill liners and grate plates. If the customer need the ball liners and grate plates, they can send  us the drawing of liners and grate plates, we can cast for them in our casting factory. If you do not have the liner data,we can send our engineer to your site and scale the liners, then we can make the drawing and cast the liner in our foundry factory for you.
