Portable Mobile Diesel Engine Stone Jaw Crusher Machine

Short Description:

Small Mobile Diesel Engine Jaw Crusher is mainly used to crush hard stone where there is no enough electricity or without electricity. Also this kind of diesel engine jaw crusher can move anywhere you want.It can crush many kinds of stone from 200mm into 20mm.


Product Detail

Product Tags

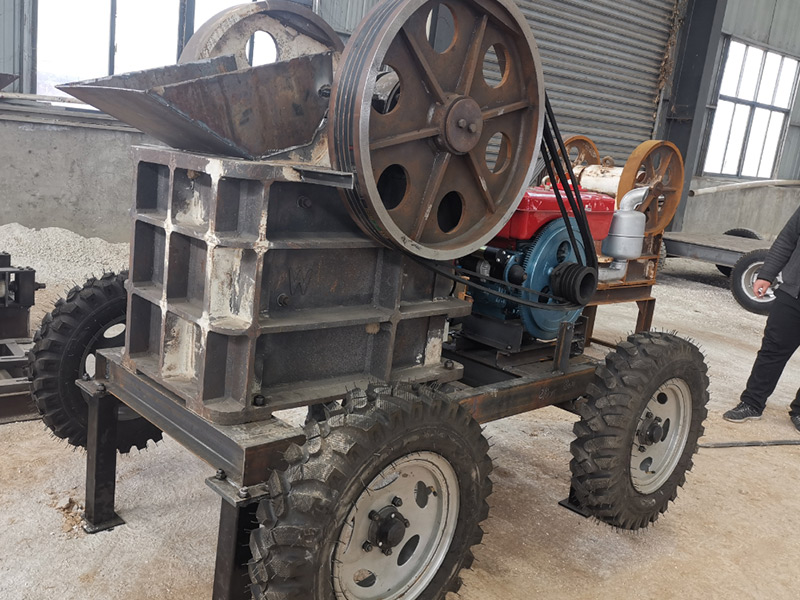

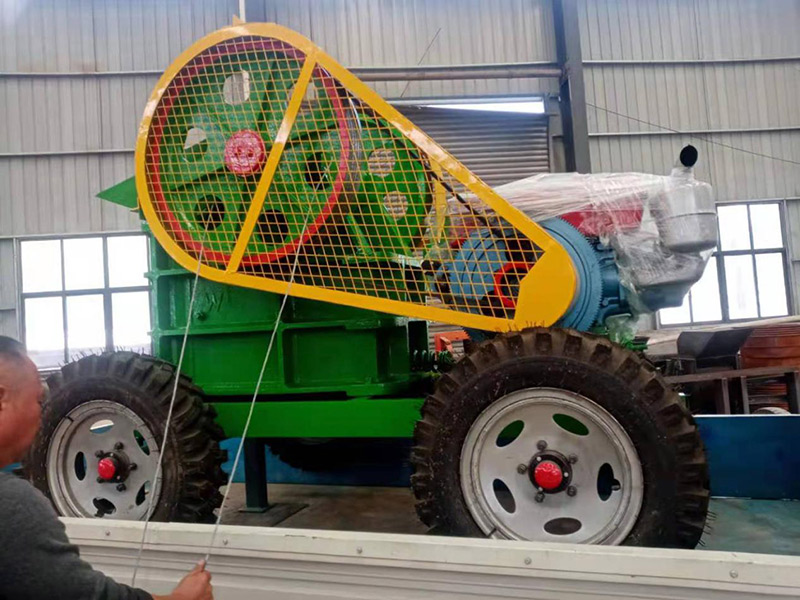

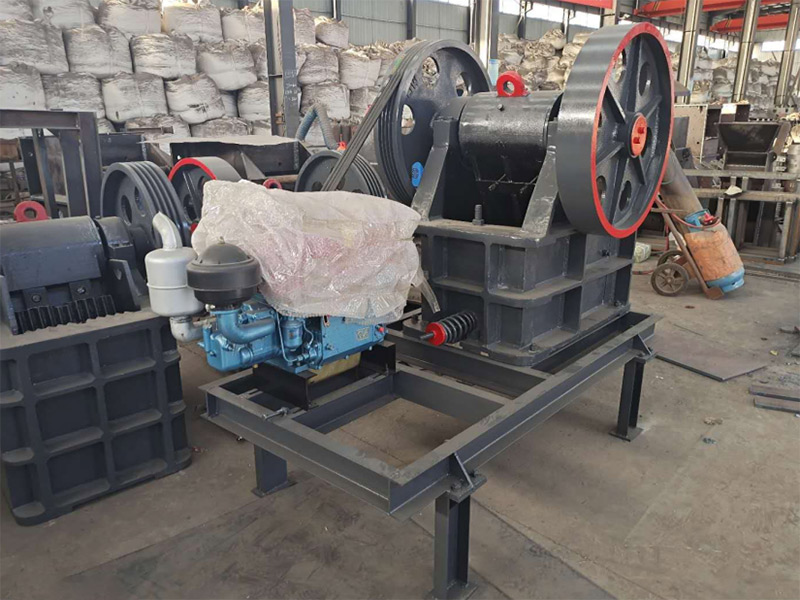

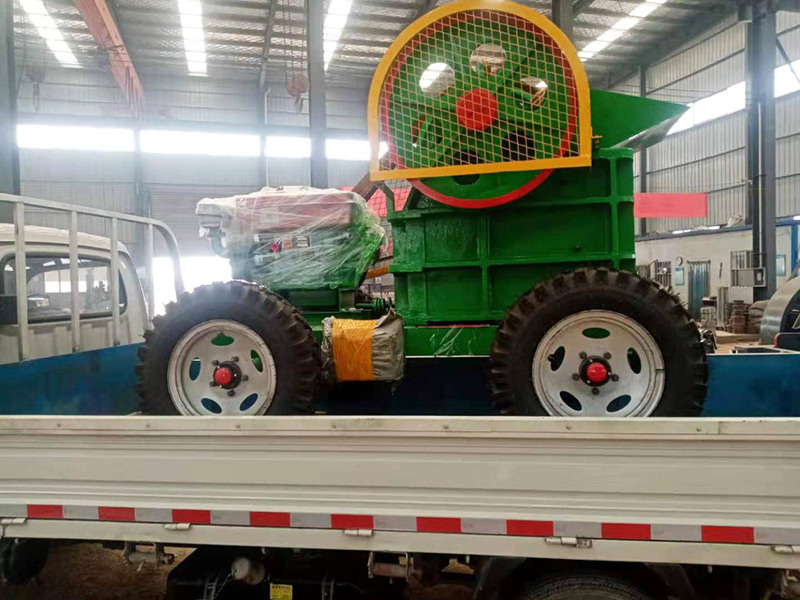

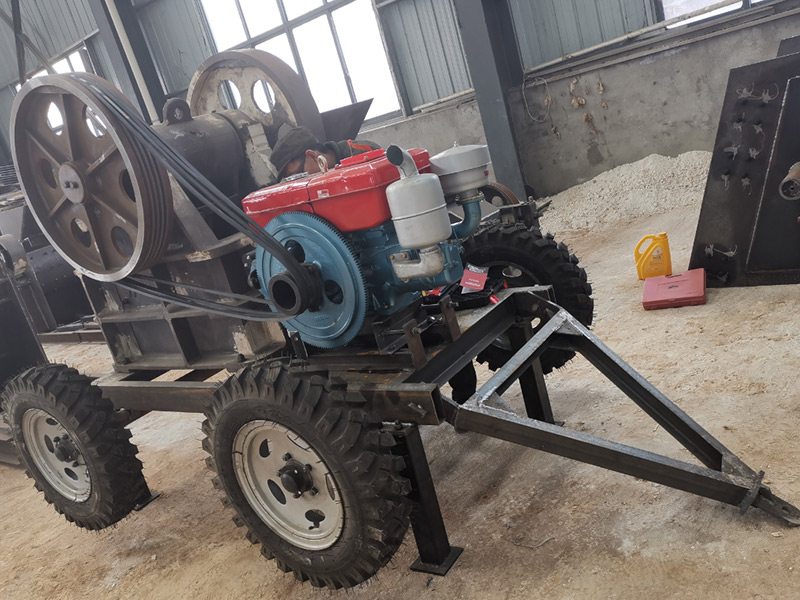

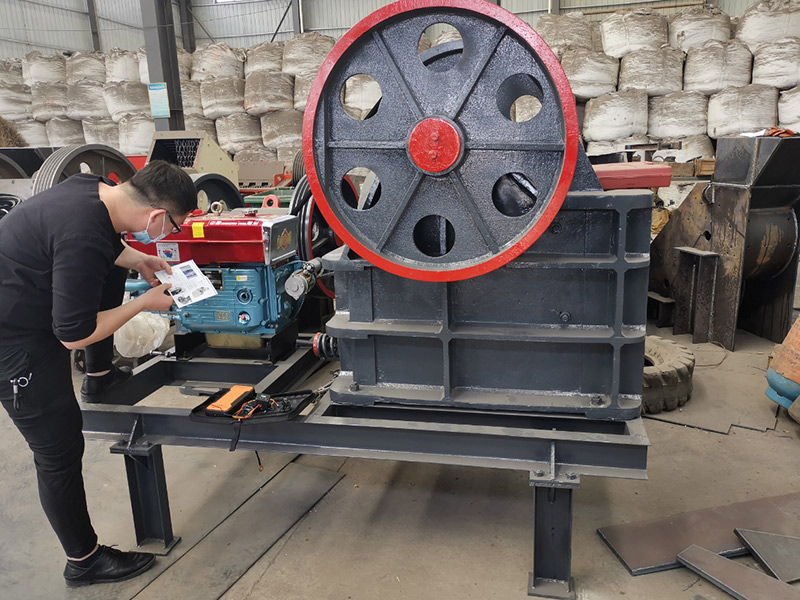

The mobile diesel engine jaw crusher machine is composed of three parts, jaw crusher, diesel engine machine and a small trailer support.Mobile diesel engine jaw crusher is specially designed for customers who need the jaw crusher works in remote mining or quarry site without electricity supply. So the diesel engine can be used as an alternative to the electric motor. it is suitable for working in any conditions. The operation of diesel engine jaw crusher is very simple. We offer battery for the starting of the diesel engine, you just need to press the button and the jaw crusher would be started automatically.


Mobile Diesel Engine Jaw Crusher Specifications

Model

Feed openning size(mm)

Max feeding size(mm)

Discharge range(mm)

Capacity(t/h)

Power

Weight

PE150x250

150x250

125

10-40

1-3

5.5

0.7

PE250x400

250x400

210

20-60

5-120

15

2.8

PE400x600

400x600

340

40-100

30-50

30

7

PE500x750

500x750

425

50-180

35-80

55

12

PE600x900

600x900

500

50-180

80-150

75

17

PE750x1060

750x1060

630

80-140

110-320

90

31

PE900x1200

900x1200

750

95-165

220-350

160

52

PE1200x1500

1200x1500

1020

150-350

400-800

220

100

PE150x750

150x750

120

18-48

10-25

15

3.8

PE250x750

250x750

210

15-60

15-35

30

6.5

PE250x1000

250x1000

210

15-60

16-52

37

7

PE250x1200

250x1200

210

15-60

20-60

45

9.7

Small Mobile Diesel Engine Jaw Crusher Advantage

1. It is set on a frame with wheels, and can be moved easily, which is flexible;

2. It is of compact structure, simple operation, high crushing ratio and is very popular among small mining plant worldwide.

3. With Mn plates, strong supporting legs, and wearable wheels, it is of long service life, and helps save maintenace cost;

4. It often matches the wet pan mill in gold process project;It help crush big size stones to small size stones, which is easy for the milling process;
